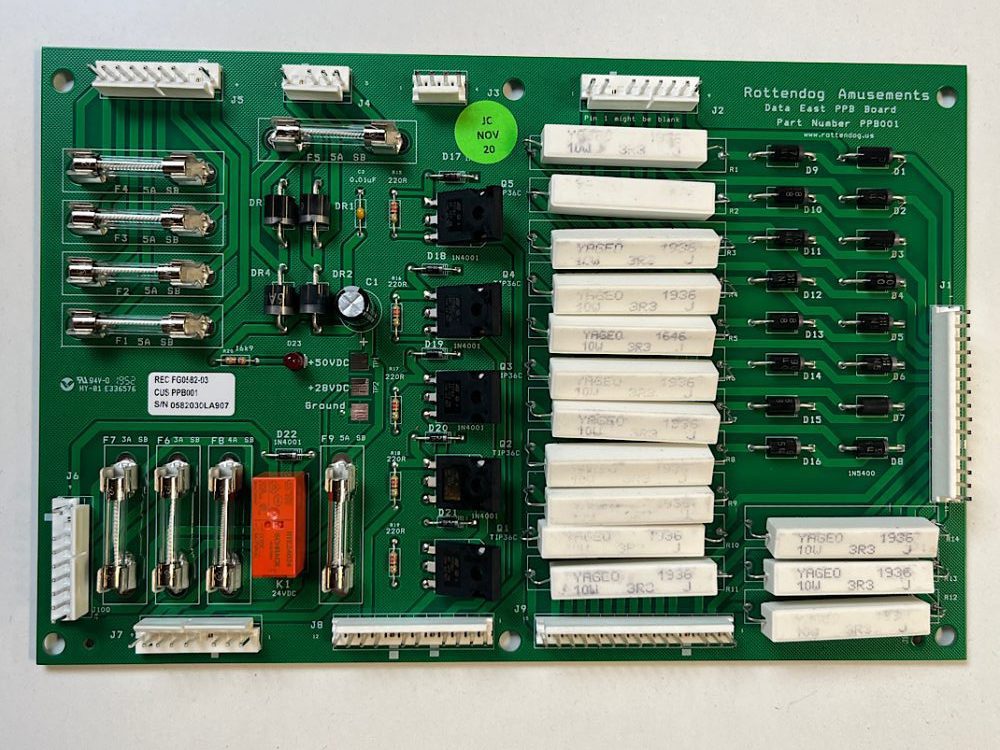

RottenDog Playfield Power Board (PPB) Part # PBB001

Playfield Power Board (PPB) used in most Data East pinball machines.  See the game listing below to see which games this driver board supports.

This board is a direct plug-in replacement for the original OEM  power supply.

The original PPB boards  that this board replaces are Data East part numbers:  520-5021-00 and 520-5021-05

Key Benefits

–  Design flaw of original boards fixed with double-sided plated through holes to eliminate solder cracking.

–  LED added for visual feedback that +50V generated by the board is  present

– Test points added to check all incoming and outgoing voltages (+50VDc and +28VDC)

– Extra safety fuses (quantity 3) added for power supply protection (not present on the original 520-5021-00 boards)

– All new (not 15+ year old) components and PCB

– All component parts are through-hole and currently available through distributors

Game List

• ABC Monday Night Football
• Back to the Future
• Batman
• Batman Forever
• Baywatch
• Checkpoint
• Frankenstein
• Guns and Roses
• Hook
• Jurassic Park
• Last Action Hero
• Lethal Weapon 3
• Maverick
• Phantom of the Opera
• Playboy 35th Anniversary
• Robocop
• Rocky and Bullwinkle
• Simpsons, The
• Star Trek 25th Anniversary
• Star Wars
• Tales from the Crypt
• Teenage Mutant Ninja Turtles
• Time Machine
• Tommy,  The Who’s
• Torpedo Alley
• WWF Royal Rumble
