RottenDog Williams / Bally WPC89/WPC89-S Driver Board WDB089

Part Number WDB089

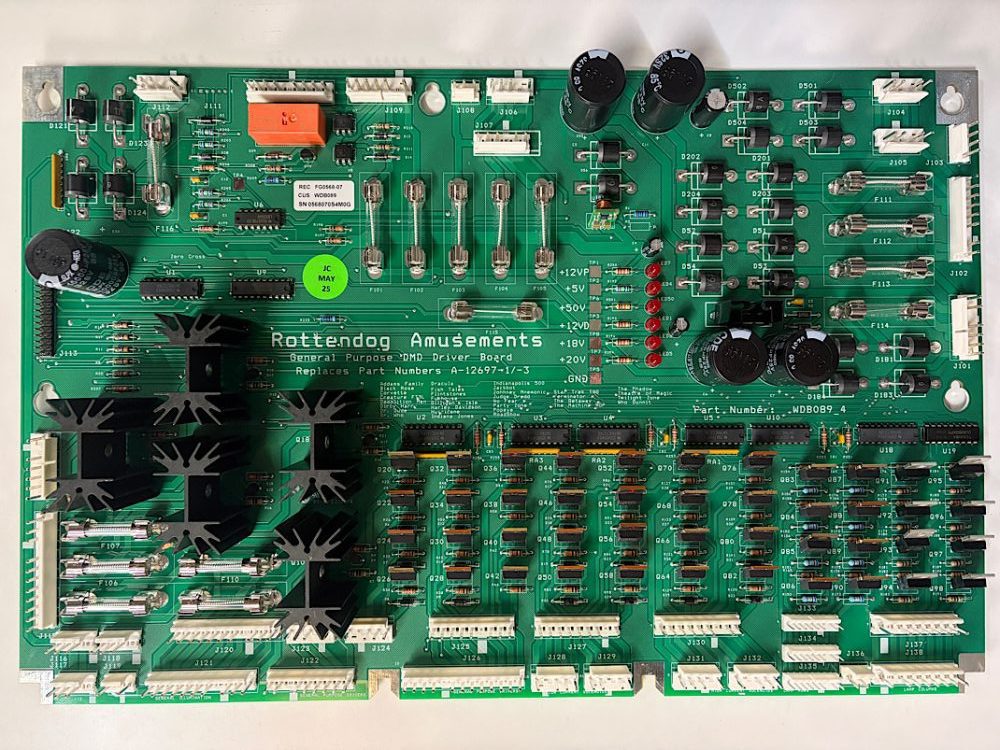

Williams / Bally WPC89/WPC89-S Driver Board

WDB089 – Driver Board compatible with Williams WPC89 and WPC-S pinball games.  The boards that this replaces are Bally / Williams part numbers A-12697-1, A-12697-3, and A-12697-4.

This board is a direct plug in replacement for the original OEM driver board.

Key Benefits

– Superior +5V Low Drop Out (LDO) regulation for operation at lower line voltages

– Inrush current into power supply capacitors reduced for longer supply life

– Simplified solenoid driver design using FET technology with oversized transistors

– Discrete diodes replace bridge rectifiers for ease of troubleshooting and reduction in heat

– Test points and LEDs added for all voltages generated on the board

– Test point locations put into one location and clearly marked for easier troubleshooting

– All new (not 20+ year old) components and PCB

Game Listing

• Addams Family
• Addams Family Gold
• Black Rose
• Corvette
• Creature Black Lagoon
• Demolition Man
• Dirty Harry
• Dr. Who
• Dracula
• Fish Tales
• Flintstones
• Funhouse
• Gilligan’s Island
• Harley Davidson
• Hurricane
• Indiana Jones
• Indianapolis 500
• Jackbot
• Johnny Mnemonic
• Judge Dredd
• No Fear
• Party Zone
• Popeye
• RoadShow
• Slugfest
• Star Trek Next Generation
• Terminator 2
• The Getaway
• The Machine BOP
• The Shadow
• Theater of Magic
• Twilight Zone
• WhiteWater
• Who Dunnit
• World Cup Soccer ’94
